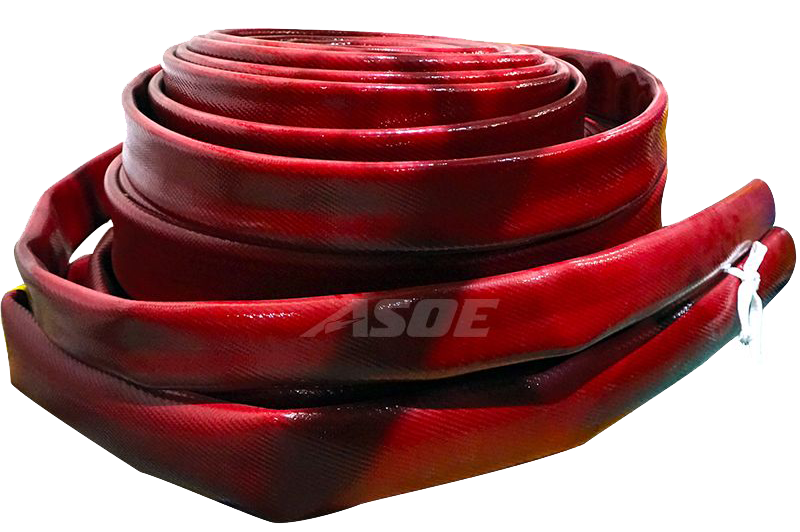

Concreflex™ TPU Lay Flat Hose

Enquire
Pipes

Description

Concreflex™ TPU hose is specifically designed for cement pouring, featuring exceptional flexibility and a lightweight construction. Its easy handling and portability make it perfect for efficient cement shimming on construction sites. The hose is highly durable, ensuring reliable performance in demanding environments, while its design allows for smooth and hassle-free operation during concrete pumping.

Basic information

• Size:
3"-5"
• Standard Color:
  (Other colours available)
• Length:
Up to 400m, customized lengths available
• Application:
Concrete Placement
• Advantages:
High pressure, Corrosion-resistant, highly wear-resistant, lightweight and portable, high tensile streng High wear resistance, Lightweight and portable, High tensile strength, High adhesion

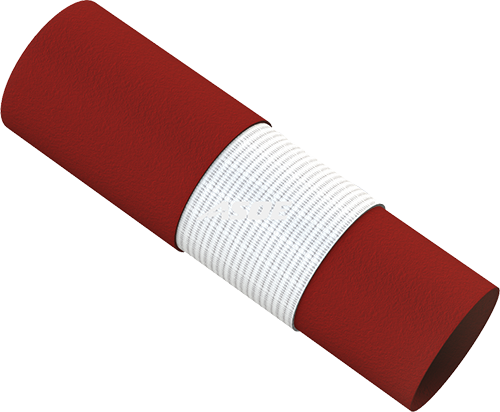

Structure

• Inner Tube:
TPU
• Outer Cover:
TPU
• Reinforcement:
Circular-woven polyester jacket
• Operating Temperature Range:
-60°F to 176°F (-50°C to 80°C)

Data Sheet

Concreflex™

Part # Normal Size (ID) Thickness Weight Working pressure Bursting pressure Tensile strength
Inch mm mm kg/m PSI/bar PSI/bar KG
CF1PU300
ID:
Inch: 3"
Mm: 76
Thickness (mm): 4.5±0.5
Weight (kg/m): 1.4
Working pressure (PSI/bar): 925/43
Bursting pressure (PSI/bar): 1850/126
Tensile strength (KG): 18700
3" 76 4.5±0.5 1.4 925/43 1850/126 18700
CF1PU400
ID:
Inch: 4"
Mm: 102
Thickness (mm): 6.0±0.5
Weight (kg/m): 2.73
Working pressure (PSI/bar): 925/43
Bursting pressure (PSI/bar): 1850/126
Tensile strength (KG): 38300
4" 102 6.0±0.5 2.73 925/43 1850/126 38300
CF1PU500
ID:
Inch: 5"
Mm: 125
Thickness (mm): 6.0±0.5
Weight (kg/m): 3.3
Working pressure (PSI/bar): 750/50
Bursting pressure (PSI/bar): 1500/100
Tensile strength (KG):48200
5" 125 6.0±0.5 3.3 750/50 1500/100 48200

Concreflex™ HP

Part # Normal Size (ID) Thickness Weight Working pressure Bursting pressure Tensile strength
Inch mm mm kg/m PSI/bar PSI/bar KG
CF1PU300
ID:
Inch: 3"
Mm: 76
Thickness (mm): 5.5±0.5
Weight (kg/m): 1.55
Working pressure (PSI/bar): 1250/85
Bursting pressure (PSI/bar): 2500/170
Tensile strength (KG): 24000
3" 76 5.5±0.5 1.55 1250/85 2500/170 24000
CF2PU3501
ID:
Inch: 3-1/2"
Mm: 90
Thickness (mm): 6.0±0.5
Weight (kg/m): 2.15
Working pressure (PSI/bar): 1250/85
Bursting pressure (PSI/bar): 2500/170
Tensile strength (KG): 32100
3-1/2" 90 6.0±0.5 2.15 1250/85 2500/170 32100
CF2PU3502
ID:
Inch: 3-1/2"
Mm: 90
Thickness (mm): 4.5±0.5
Weight (kg/m): 1.74
Working pressure (PSI/bar): 1250/85
Bursting pressure (PSI/bar): 2500/170
Tensile strength (KG):32100
3-1/2" 90 4.5±0.5 1.74 1250/85 2500/170 32100
CF2PU400
ID:
Inch: 4"
Mm: 102
Thickness (mm): 6.0±0.5
Weight (kg/m): 2.9
Working pressure (PSI/bar): 1250/85
Bursting pressure (PSI/bar): 2500/170
Tensile strength (KG):38300
4" 102 6.0±0.5 2.9 1250/85 2500/170 38300
CF2PU500
ID:
Inch: 5"
Mm: 125
Thickness (mm): 6.0±0.5
Weight (kg/m): 3.3
Working pressure (PSI/bar): 1075/75
Bursting pressure (PSI/bar): 2150/150
Tensile strength (KG):62000
5" 125 6.0±0.5 3.3 1075/75 2150/150 62000
