Description

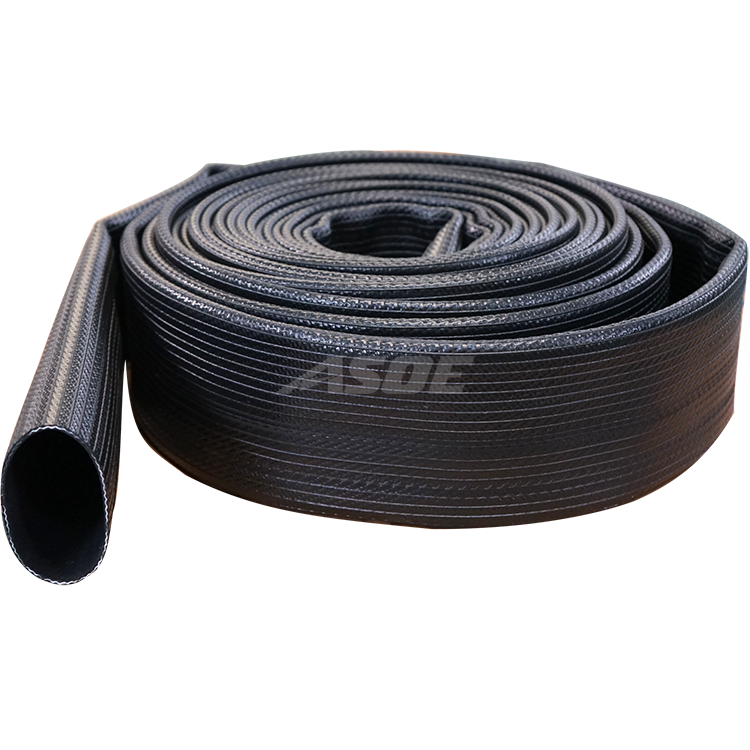

Longman™ NBR Lay Flat Hose is a durable, high-performance hose designed for fluid transfer in agriculture, firefighting, and industrial applications. Made from nitrile rubber (NBR) and reinforced with a high-strength polyester jacket, it offers excellent resistance to oil, abrasion, and weather. Its lay-flat design ensures easy handling, storage, and transportation.

Basic information

• Size:
1"-12"
• Standard Color:
 (Other colours available)
• Length:
Up to 200m, customized lengths available
• Application:
Dewatering
• Advantages:
High pressure, Corrosion-resistant, highly wear-resistant, lightweight and portable, high tensile strength

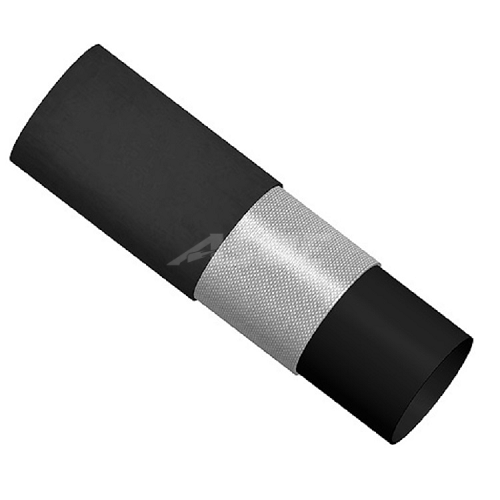

Structure

• Inner Tube:
NBR
• Outer Cover:
NBR with Rib
• Reinforcement:
Circular-woven polyester jacket
• Operating Temperature Range:
-4°F to 176°F (-20°C to 80°C)

Data Sheet

Part # ID Thickness Weight Working pressure Bursting pressure Tensile strength
Inch mm mm kg/m PSI/bar PSI/bar KG
LM450NBR150
ID:
Inch: 1-1/2"
Mm: 39+1.5
Thickness (mm): 2.0
Weight (kg/m): 0.32
Working pressure (PSI/bar): 150/10
Bursting pressure (PSI/bar): 450/30
Tensile strength (KG): 3500
1-1/2" 39+1.5 2.0 0.32 150/10 450/30 3500
LM450NBR200
ID:
Inch: 2"
Mm: 51+1.5
Thickness (mm): 2.1
Weight (kg/m): 0.45
Working pressure (PSI/bar): 150/10
Bursting pressure (PSI/bar): 450/30
Tensile strength (KG): 4900
2" 51+1.5 2.1 0.45 150/10 450/30 4900
LM450NBR250
ID:
Inch: 2-1/2"
Mm: 64.5+2.0
Thickness (mm): 2.2
Weight (kg/m): 0.65
Working pressure (PSI/bar): 150/10
Bursting pressure (PSI/bar): 450/30
Tensile strength (KG): 7200
2-1/2" 64.5+2.0 2.2 0.65 150/10 450/30 7200
LM450NBR300
ID:
Inch: 3"
Mm: 76+2.0
Thickness (mm): 2.0
Weight (kg/m): 0.61
Working pressure (PSI/bar): 150/10
Bursting pressure (PSI/bar): 450/30
Tensile strength (KG): 8000
3" 76+2.0 2.0 0.61 150/10 450/30 8000
LM450NBR400
ID:
Inch: 4"
Mm: 104+2.0
Thickness (mm): 2.5
Weight (kg/m): 1.05
Working pressure (PSI/bar): 150/10
Bursting pressure (PSI/bar): 450/30
Tensile strength (KG): 12800
4" 104+2.0 2.5 1.05 150/10 450/30 12800
LM450NBR500
ID:
Inch: 5"
Mm: 125+2.0
Thickness (mm): 3.0
Weight (kg/m): 1.50
Working pressure (PSI/bar): 150/10
Bursting pressure (PSI/bar): 450/30
Tensile strength (KG): 180000
5" 125+2.0 3.0 1.50 150/10 450/30 18000
LM450NBR600
ID:
Inch: 6"
Mm: 155+2.0
Thickness (mm): 3.0
Weight (kg/m): 2.15
Working pressure (PSI/bar): 150/10
Bursting pressure (PSI/bar): 450/30
Tensile strength (KG): 22200
6" 155+2.0 3.0 2.15 150/10 450/30 22200
LM450NBR800
ID:
Inch:8"
Mm: 250+3.0
Thickness (mm): 3.5
Weight (kg/m): 2.80
Working pressure (PSI/bar): 150/10
Bursting pressure (PSI/bar): 450/30
Tensile strength (KG): 35800
8" 250+3.0 3.5 2.80 150/10 450/30 35800
LM450NBR1000
ID:
Inch: 10"
Mm: 255+3.0
Thickness (mm): 4.3
Weight (kg/m): 4.20
Working pressure (PSI/bar): 150/10
Bursting pressure (PSI/bar): 450/30
Tensile strength (KG): 53700
10" 255+3.0 4.3 4.20 150/10 450/30 53700
LM450NBR1200
ID:
Inch: 12"
Mm: 305+3.0
Thickness (mm): 4.5
Weight (kg/m): 5.4
Working pressure (PSI/bar): 150/10
Bursting pressure (PSI/bar): 450/30
Tensile strength (KG): 66100
12" 305+3.0 4.5 5.4 150/10 450/30 66100
