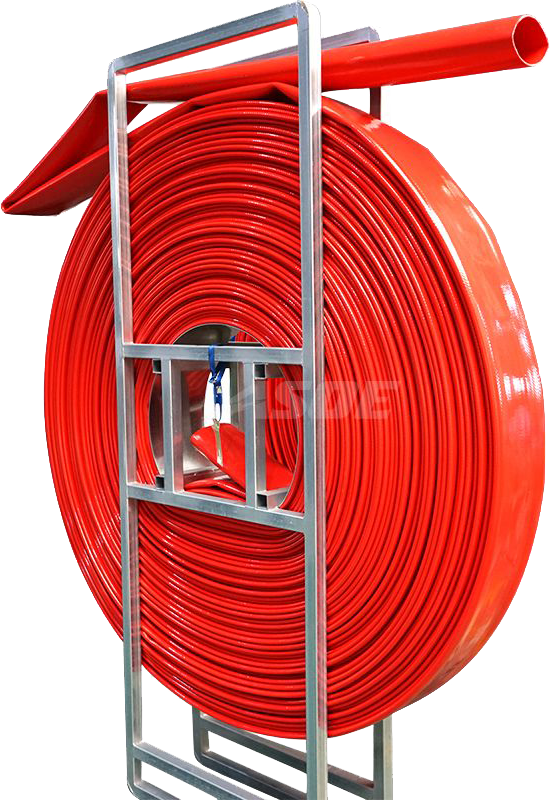

Manureflow™ Drag TPU Lay Flat Hose

Enquire
Pipes

Description

ManureFlow™ Drag TPU hose is a high-performance solution for agricultural manure drag irrigation. Designed for durability, it features high tensile strength, superior adhesive strength, and excellent abrasion resistance. The hose is also hydrolysis-resistant, UV, ozone, and weathering-resistant, as well as resistant to fungus and manure. Its flexible design prevents kinking during operation, ensuring smooth and efficient performance. Lightweight and easy to handle, ManureFlow™ delivers reliability and longevity in demanding farming environments.

Basic information

• Size:
2-1/2"-8"
• Standard Color:
 (Other colours available)
• Length:
Up to 400m, customized lengths available
• Application:
Agriculture irrigation
• Advantages:
High wear resistance, Lightweight and portable, High tensile strength, High adhesion, Kink resistance

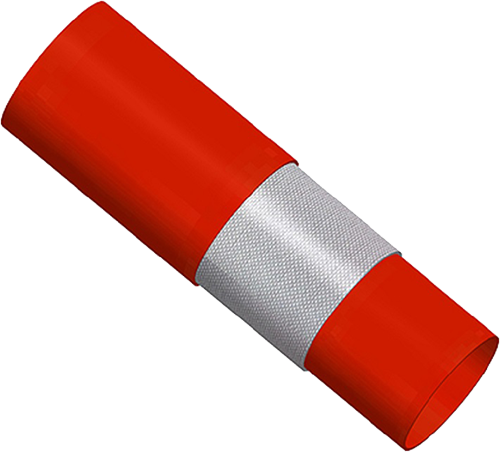

Structure

• Inner Tube:
TPU
• Outer Cover:
TPU
• Reinforcement:
Circular-woven polyester jacket
• Operating Temperature Range:
-60°F to 176°F (-50°C to 80°C)

Data Sheet

Part # ID Thickness Weight Working pressure Bursting pressure Tensile strength
Inch mm mm kg/m PSI/bar PSI/bar KG
MDPU250
ID:
Inch: 2-1/2"
Mm: 65
Thickness (mm): 2.7
Weight (kg/m): 0.59
Working pressure (PSI/bar): 300/21
Bursting pressure (PSI/bar): 900/63
Tensile strength (KG): 8300
2-1/2" 65 2.7 0.59 300/21 900/63 8300
MDPU300
ID:
Inch: 3"
Mm: 76
Thickness (mm): 3.2
Weight (kg/m): 0.95
Working pressure (PSI/bar): 250/17
Bursting pressure (PSI/bar): 750/51
Tensile strength (KG): 9800
3" 76 3.2 0.95 250/17 750/51 9800
MDPU400
ID:
Inch: 4"
Mm: 102
Thickness (mm): 4.5
Weight (kg/m): 1.60
Working pressure (PSI/bar): 180/12
Bursting pressure (PSI/bar): 540/36
Tensile strength (KG): 17600
4" 102 4.5 1.60 180/12 540/36 17600
MDPU500
ID:
Inch: 5"
Mm: 125
Thickness (mm): 4.2
Weight (kg/m): 2.05
Working pressure (PSI/bar): 150/10
Bursting pressure (PSI/bar): 450/30
Tensile strength (KG): 29400
5" 125 4.2 2.05 150/10 450/30 29400
MDPU550
ID:
Inch: 5.5"
Mm: 140
Thickness (mm): 5.1
Weight (kg/m): 2.58
Working pressure (PSI/bar): 150/10
Bursting pressure (PSI/bar): 450/30
Tensile strength (KG): 30900
5.5" 140 5.1 2.58 150/10 450/30 30900
MDPU600
ID:
Inch: 6"
Mm: 152.4
Thickness (mm): 5.6
Weight (kg/m): 3.18
Working pressure (PSI/bar): 150/10
Bursting pressure (PSI/bar): 450/30
Tensile strength (KG): 33900
6" 152.4 5.6 3.18 150/10 450/30 33900
MDPU700
ID:
Inch: 7"
Mm: 180
Thickness (mm): 5.8
Weight (kg/m): 3.68
Working pressure (PSI/bar): 150/10
Bursting pressure (PSI/bar): 450/30
Tensile strength (KG): 40300
7" 180 5.8 3.68 150/10 430/30 40300
MDPU750
ID:
Inch:7.5"
Mm: 190
Thickness (mm): 6.0
Weight (kg/m): 4.10
Working pressure (PSI/bar): 150/10
Bursting pressure (PSI/bar): 450/30
Tensile strength (KG): 47800
7.5" 190 6.0 4.10 150/10 450/30 47800
MDPU800
ID:
Inch: 8"
Mm: 204
Thickness (mm): 6.0
Weight (kg/m): 4.58
Working pressure (PSI/bar): 150/10
Bursting pressure (PSI/bar): 450/30
Tensile strength (KG): 53700
8" 204 6.0 4.58 150/10 450/30 53700
