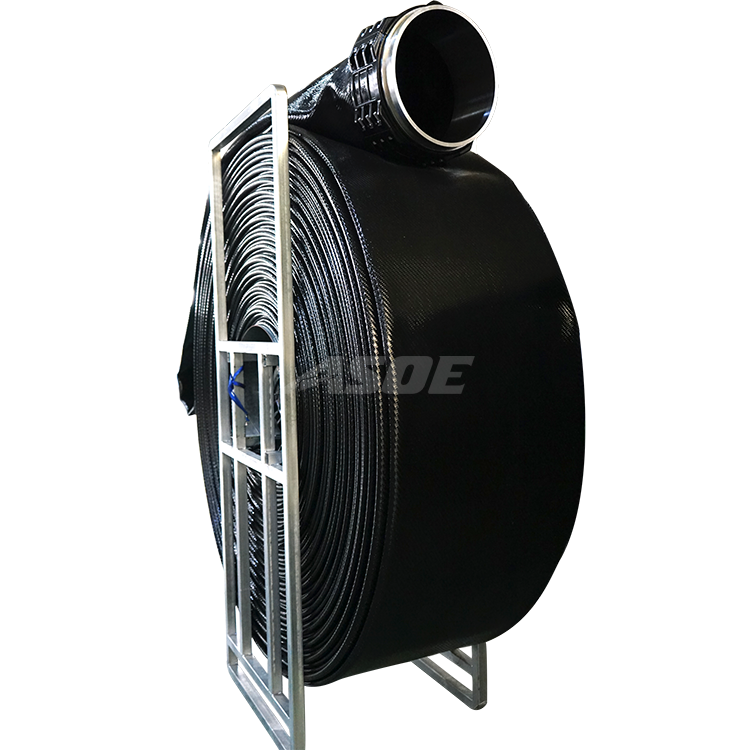

Manureflow™ Supply TPU Lay Flat Hose

Enquire
Pipes

Description

ManureFlow™ Supply TPU hose is designed for efficient manure transfer in agricultural applications. It features high tensile strength, excellent abrasion resistance, and superior flexibility. The hose is resistant to hydrolysis, UV, ozone, and harsh weather conditions, ensuring durability in demanding environments. Its lightweight design allows for easy handling and deployment, making it a reliable choice for modern manure management systems.

Basic information

• Size:
5"-12"
• Standard Color:
 (Other colours available)
• Length:
Up to 400m, customized lengths available
• Application:
Agriculture Irrigation
• Advantages:
Flexible, High wear resistance, Lightweight and portable, High adhesion

Structure

• Inner Tube:
TPU
• Outer Cover:
TPU
• Reinforcement:
Circular-woven polyester jacket
• Operating Temperature Range:
-60°F to 176°F (-50°C to 80°C)

Data Sheet

Part # ID Thickness Weight Working pressure Bursting pressure Tensile strength
Inch mm mm kg/m PSI/bar PSI/bar KG
MSPU500
ID:
Inch: 5"
Mm: 125
Thickness (mm): 4.0
Weight (kg/m): 2.10
Working pressure (PSI/bar): 200/14
Bursting pressure (PSI/bar): 600/42
Tensile strength (KG): 23600
5" 125 4.0 2.10 200/14 600/42 23600
MSPU600
ID:
Inch: 6"
Mm: 152.4
Thickness (mm): 4.0
Weight (kg/m): 2.30
Working pressure (PSI/bar): 200/14
Bursting pressure (PSI/bar): 600/42
Tensile strength (KG): 27100
6" 152.4 4.0 2.30 200/14 600/42 27100
MSPU700
ID:
Inch: 7"
Mm: 180
Thickness (mm): 4.3
Weight (kg/m): 3.10
Working pressure (PSI/bar): 215/15
Bursting pressure (PSI/bar): 645/45
Tensile strength (KG):34800
7" 180 4.3 3.10 215/15 645/45 34800
MSPU800
ID:
Inch: 8"
Mm: 204
Thickness (mm): 4.3
Weight (kg/m): 3.50
Working pressure (PSI/bar): 215/15
Bursting pressure (PSI/bar): 645/45
Tensile strength (KG): 45800
8" 204 4.3 3.50 215/15 645/45 45800
MSPU1000
ID:
Inch: 10"
Mm: 254
Thickness (mm): 4.2
Weight (kg/m): 3.80
Working pressure (PSI/bar): 200/14
Bursting pressure (PSI/bar): 600/42
Tensile strength (KG): 57800
10" 254 4.2 3.80 200/14 600/42 57800
MSPU1200
ID:
Inch: 12"
Mm: 305
Thickness (mm): 4.3
Weight (kg/m): 4.60
Working pressure (PSI/bar): 200/14
Bursting pressure (PSI/bar): 600/42
Tensile strength (KG): 78300
12" 305 4.3 4.60 200/14 600/42 78300
MSPU1400
ID:
Inch: 14"
Mm: 355
Thickness (mm): 4.3
Weight (kg/m): 5.25
Working pressure (PSI/bar): 200/14
Bursting pressure (PSI/bar): 600/42
Tensile strength (KG): 92100
14" 355 4.3 5.25 200/14 600/42 92100
MSPU1600
ID:
Inch:16"
Mm: 405
Thickness (mm): 4.3
Weight (kg/m): 6.20
Working pressure (PSI/bar): 150/10
Bursting pressure (PSI/bar): 450/30
Tensile strength (KG): 101800
16" 405 4.3 6.20 150/10 450/30 101800
