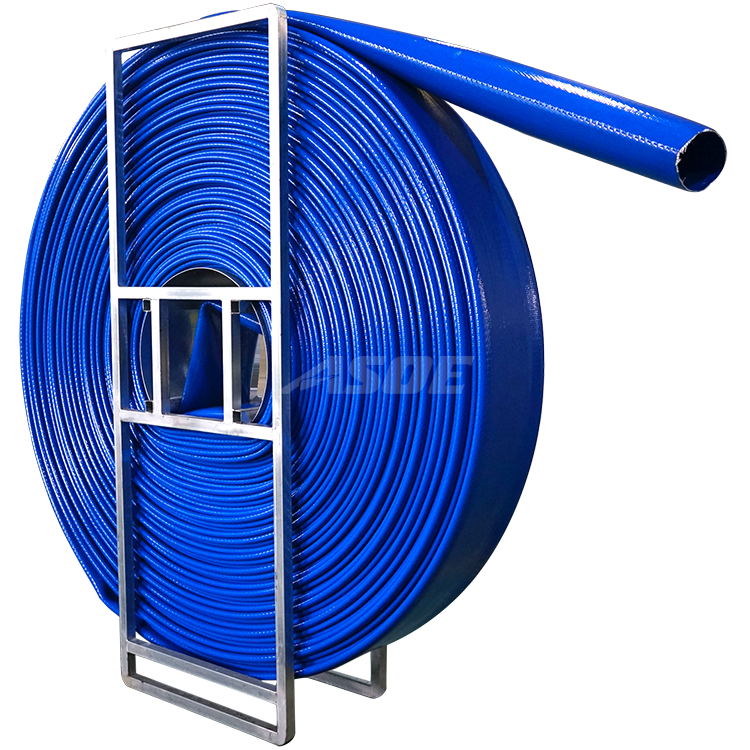

Potaflow™ TPU Lay Flat Hose

Enquire
Pipes

Description

Potaflow™ TPU hose is a safe and reliable solution for temporary drinking water transportation. Designed to meet safety standards, it is non-toxic, ensuring clean and safe water delivery. The hose is resistant to UV, ozone, and weathering, offering durability in temporary setups. Its lightweight and flexible design make it easy to deploy and handle, providing an efficient solution for short-term water transportation needs.

Basic information

• Size:
1"-24"
• Standard Color:
 (Other colours available)
• Length:
Up to 400m, customized lengths available
• Application:
Potable water transfer
• Advantages:
High pressure, Corrosion-resistant, highly wear-resistant, lightweight and portable, high tensile strength, NSF 61 Certified

Structure

• Inner Tube:
TPU
• Outer Cover:
TPU
• Reinforcement:
Circular-woven polyester jacket
• Operating Temperature Range:
-60°F to 176°F (-50°C to 80°C)

Data Sheet

Part # ID Thickness Weight Working pressure Bursting pressure Tensile strength
Inch mm mm kg/m PSI/bar PSI/bar KG
MTPU150
ID:
Inch: 1-1/2"
Mm: 39+1.5
Thickness (mm): 2.6
Weight (kg/m): 0.45
Working pressure (PSI/bar): 300/21
Bursting pressure (PSI/bar): 900/63
Tensile strength (KG): 5800
1-1/2" 39+1.5 2.6 0.45 300/21 900/63 5800
MTPU200
ID:
Inch: 2"
Mm: 51+1.5
Thickness (mm): 3.0
Weight (kg/m): 0.70
Working pressure (PSI/bar): 300/21
Bursting pressure (PSI/bar): 900/63
Tensile strength (KG): 5800
2" 51+1.5 3.0 0.70 300/21 900/63 5800
MTPU250
ID:
Inch: 2-1/2"
Mm: 64.5+2.0
Thickness (mm): 3.0
Weight (kg/m): 0.75
Working pressure (PSI/bar): 300/21
Bursting pressure (PSI/bar): 900/63
Tensile strength (KG): 6100
2-1/2" 64.5+2.0 3.0 0.75 300/21 900/63 6100
MTPU300
ID:
Inch: 3"
Mm: 76+2.0
Thickness (mm): 3.0
Weight (kg/m): 1.07
Working pressure (PSI/bar): 250/17
Bursting pressure (PSI/bar): 750/51
Tensile strength (KG): 9900
3" 76+2.0 3.0 1.07 250/17 750/51 9900
MTPU400
ID:
Inch: 4"
Mm: 104+2.0
Thickness (mm): 3.5
Weight (kg/m): 1.45
Working pressure (PSI/bar): 250/17
Bursting pressure (PSI/bar): 750/51
Tensile strength (KG): 18200
4" 104+2.0 3.5 1.45 250/17 750/51 18200
MTPU600
ID:
Inch: 6"
Mm: 155+2.0
Thickness (mm): 4.0
Weight (kg/m): 2.30
Working pressure (PSI/bar): 200/14
Bursting pressure (PSI/bar): 600/42
Tensile strength (KG): 27100
6" 155+2.0 4.0 2.30 200/14 600/42 27100
MTPU800
ID:
Inch: 8"
Mm: 205+3.0
Thickness (mm): 4.5
Weight (kg/m): 3.50
Working pressure (PSI/bar): 215/15
Bursting pressure (PSI/bar): 645/45
Tensile strength (KG): 45800
8" 205+3.0 4.5 3.50 215/15 645/45 45800
MTPU1000
ID:
Inch:10"
Mm: 254+3.0
Thickness (mm): 4.2
Weight (kg/m): 3.80
Working pressure (PSI/bar): 200/14
Bursting pressure (PSI/bar): 600/42
Tensile strength (KG): 57800
10" 254+3.0 4.2 3.80 200/14 600/42 57800
MTPU1200
ID:
Inch: 12"
Mm: 305+3.0
Thickness (mm): 4.3
Weight (kg/m): 4.60
Working pressure (PSI/bar): 200/14
Bursting pressure (PSI/bar): 600/42
Tensile strength (KG): 78300
12" 305+3.0 4.3 4.60 200/14 600/42 78300
MTPU1400
ID:
Inch: 14"
Mm: 355+3.0
Thickness (mm): 4.3
Weight (kg/m): 5.25
Working pressure (PSI/bar): 200/14
Bursting pressure (PSI/bar): 600/42
Tensile strength (KG): 92100
14" 355+3.0 4.3 5.25 200/14 600/42 92100
MTPU1600
ID:
Inch: 16"
Mm: 405+3.0
Thickness (mm): 4.3
Weight (kg/m): 6.20
Working pressure (PSI/bar): 150/10
Bursting pressure (PSI/bar): 450/30
Tensile strength (KG): 101800
16" 405+3.0 4.3 6.2 150/10 450/30 101800
