Trenchless Rehabilitation on Pressure Pipes

The GAS Liner Solution is used to rehabilitate the following:

  • Natural, Coke oven gas
  • Methane, Propane, Butane
  • Hydrogen, Nitrogen Carbon dioxide
  • Carbon monoxide
  • Oxygen, Hydrogen sulphide
  • Biogas

Technical Specifications

  • TRENCHLESS SOLUTION TYPE: Semi-structural pipe rehabilitation
  • ID OF HOST PIPE: DN 50mm – DN 600mm
  • MAX LENGTH OF EACH INSTALLATION: Depends on diameter
  • MAX OPERATING PRESSURE: 1 – 4 Mpa (10 – 40 bar)
  • MAX BURSTING PRESSURE: 3 – 12 Mpa (30 – 120 bar)
  • TEMPERATURE OF MEDIUM: 40º C – 70º C (104°F – 158°F)
  • INSTALLATION MODE: Pull in U-shape liners
  • ABRASION RESISTANCE: Tailored to specific application
  • WALL THICKNESS: 6mm – 8mm
  • PULLING SPEED: Up to 400m/h
  • SERVICE LIFE: 40 years

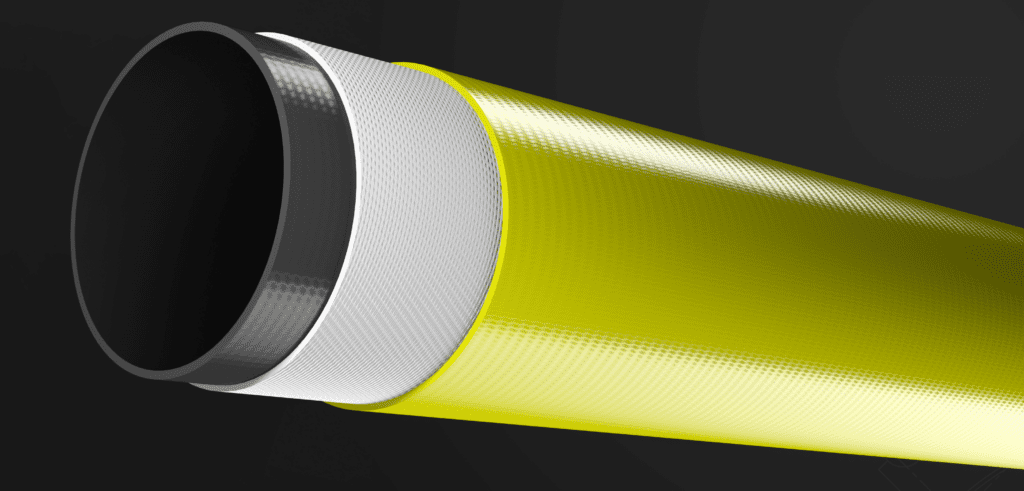

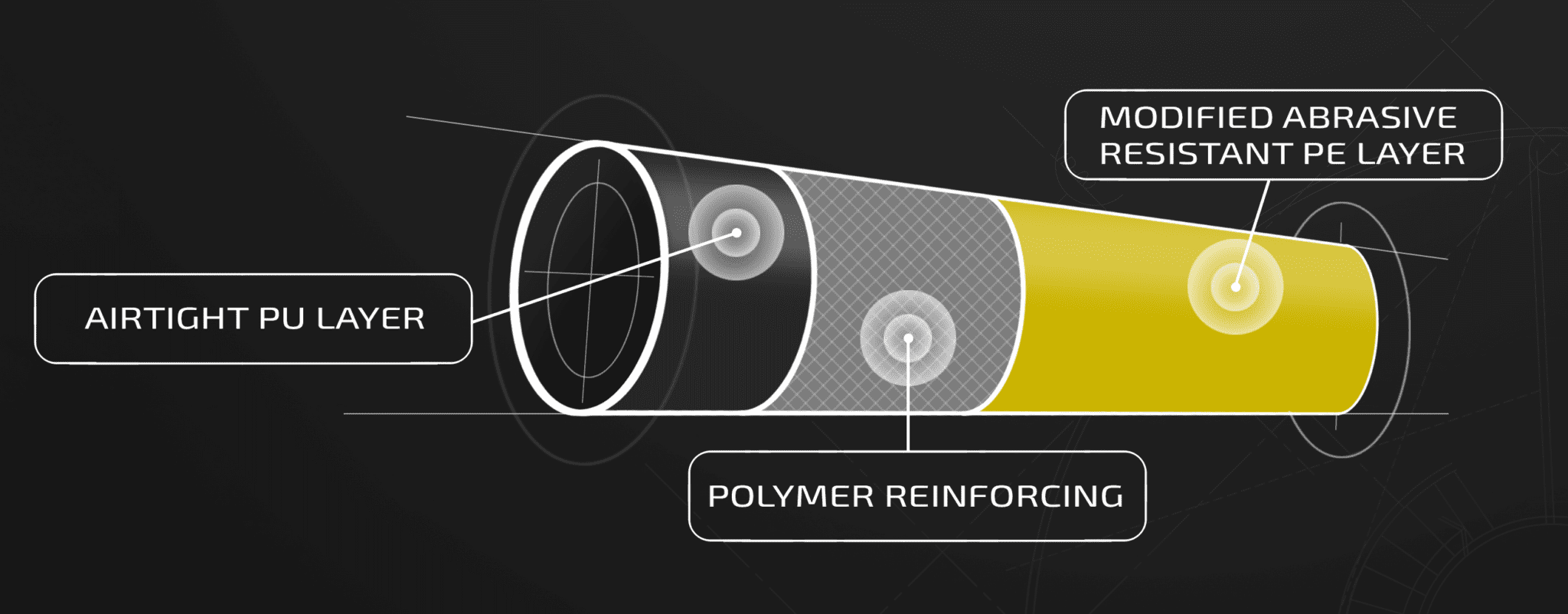

  • RAW MATERIALS: High tenacity fabric reinforced layer, abrasion resistant PE cover, PE tube, airtight PU tube

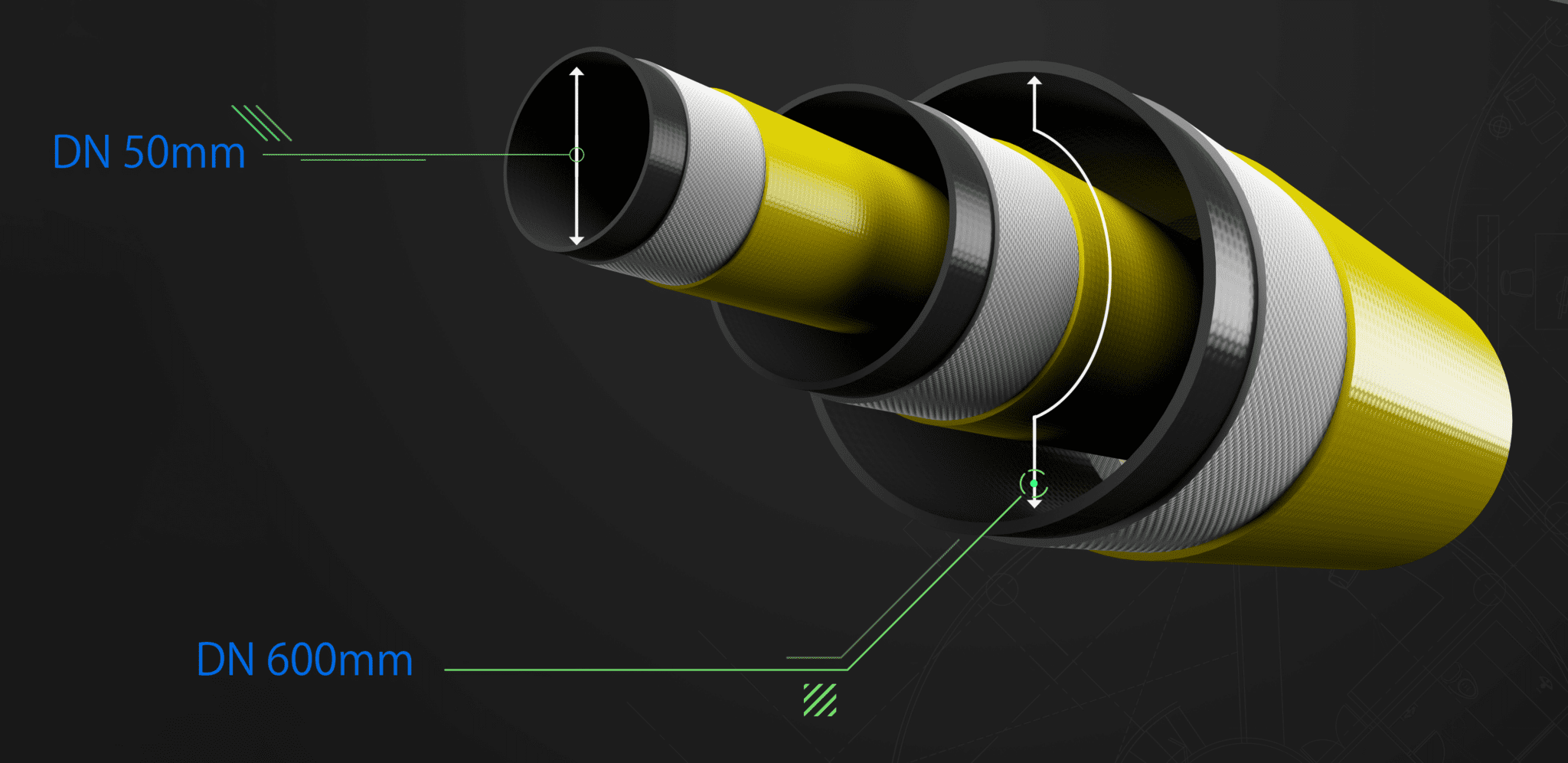

Diameter of liner

Our Water Liner ranges from DN 50mm – DN 600mm

WE CAN MAKE UP THE ID TO YOUR EXACT SPECIFICATIONS
