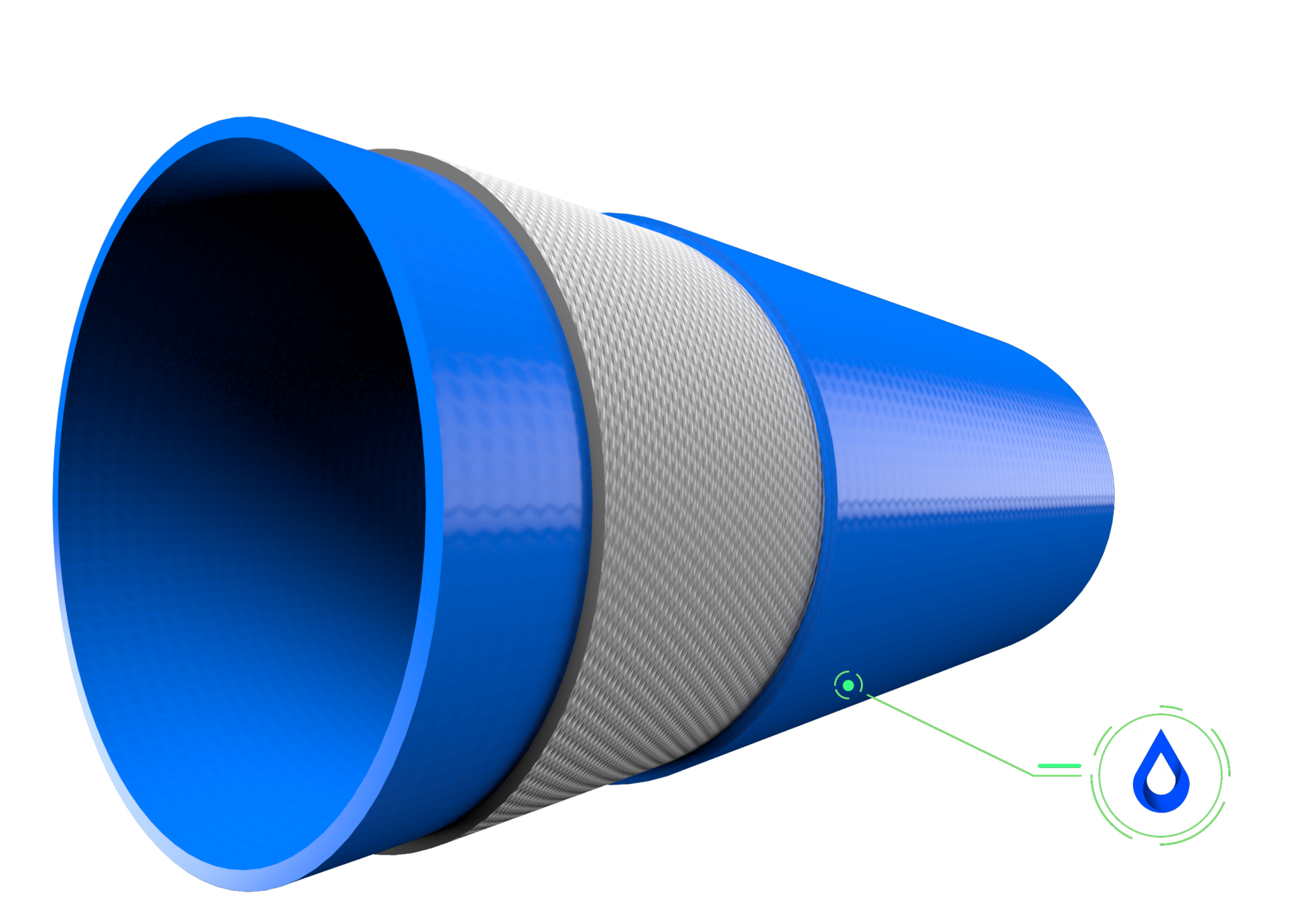

Water Liner solution

Enquire
Pipes

Trenchless Rehabilitation on Pressure Pipes

The water liner solution is used to rehabilitate the following:

  • Pressure potable water mains
  • Salt, ground, mining & dewatering
  • Sub sea
  • Industrial processed water

Technical Specifications

  • TRENCHLESS SOLUTION TYPE: Semi-structural pipe rehabilitation
  • ID OF HOST PIPE: DN 50mm – DN 1600mm
  • MAX LENGTH OF EACH INSTALLATION: Depends on diameter
  • MAX OPERATING PRESSURE: 1 – 4 Mpa (10 – 40 bar)
  • MAX BURSTING PRESSURE: 3 – 12 Mpa (30 – 120 bar)
  • TEMPERATURE OF MEDIUM: 40º C – 70º C (104°F – 158°F)
  • INSTALLATION MODE: Pull in U-shape liners
  • ABRASION RESISTANCE: Tailored to specific application
  • WALL THICKNESS: 6mm – 8mm
  • PULLING SPEED: Up to 400m/h
  • SERVICE LIFE: 50 years

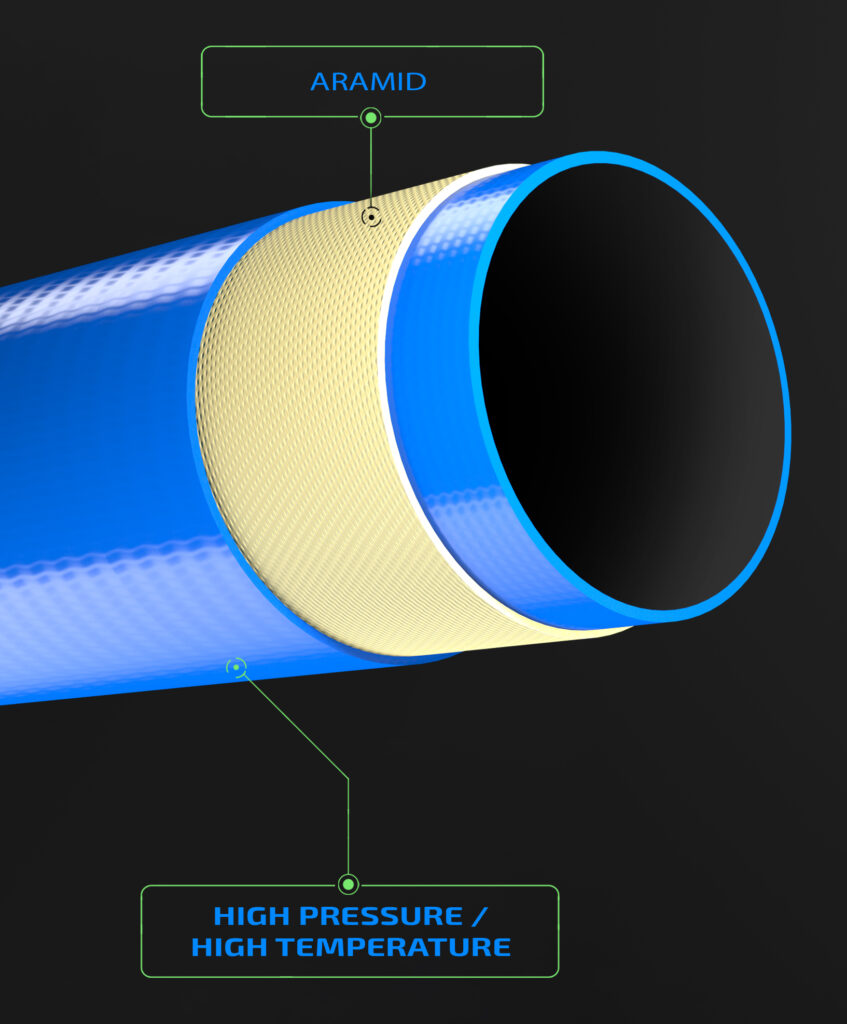

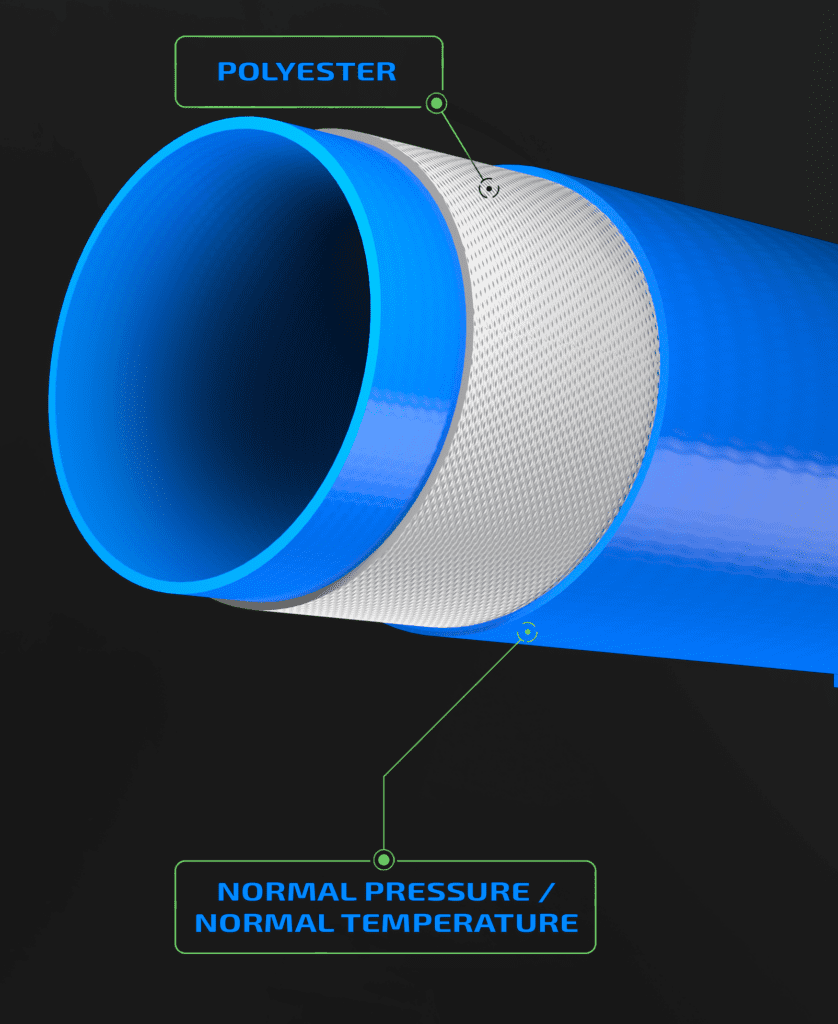

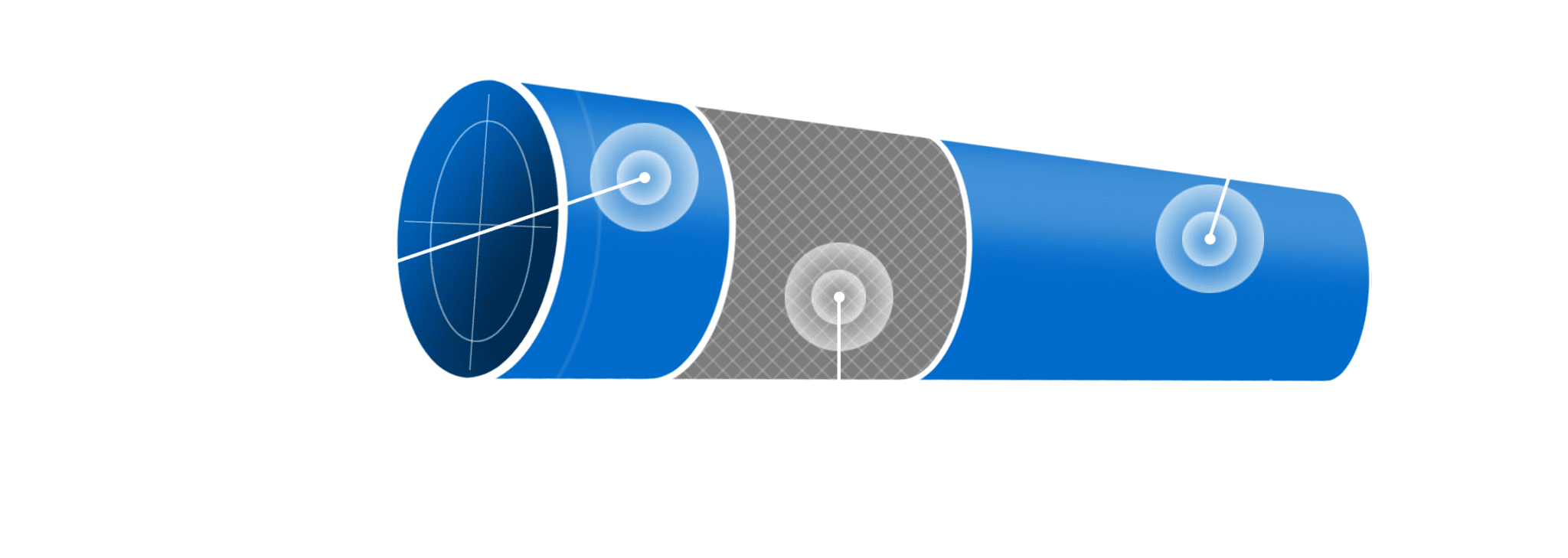

  • RAW MATERIALS: High tenacity fabric reinforcement layer (Polyester/Aramid), abrasion resistant PE cover, PE tube

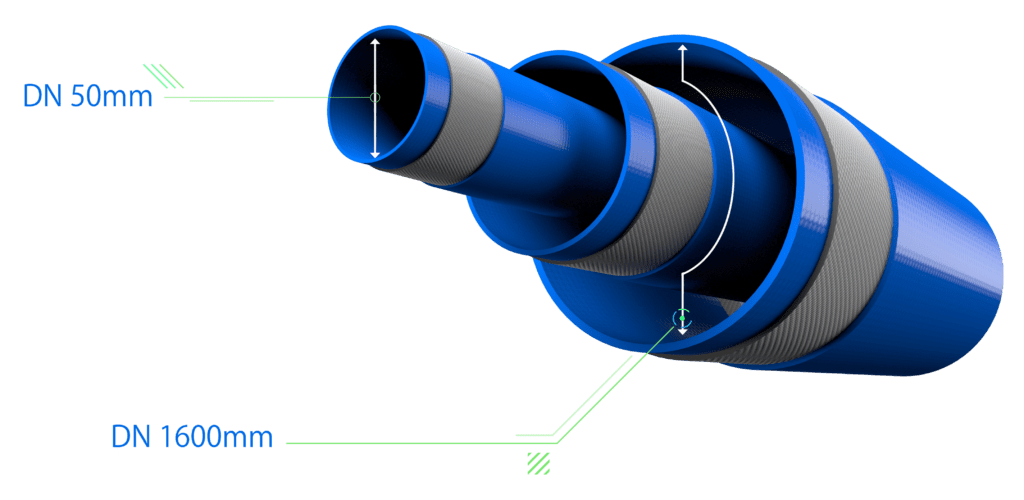

Diameter of liner

Our Water Liner ranges from DN 50mm – DN 1600mm

WE CAN MAKE UP THE ID TO YOUR EXACT SPECIFICATIONS
